Adding a new builtin distro

How the build works

Each builtin distribution comes as a single layer Docker image published on the github docker registry (ghcr.io). For each distribution, there are two versions:

  • A configured version (see here)
  • A non configured version that is named after the name of the configured version with the suffix -base (i.e. alpine-base).

All the builtin distributions are listed in a JSON file named builtins.rootfs.json and pushed into the special github repository branch rootfs. It is reachable from the internet at the following URL:

https://raw.githubusercontent.com/antoinemartin/PowerShell-Wsl-Manager/refs/heads/rootfs/builtins.rootfs.json

The docker container images as well as the above listing are produced by the .github/workflows/build-rootfs-oci.yaml github actions workflow.

The process is composed of the following steps:

  • Downloading the compressed base root filesystem from upstream.
  • Extract distribution information from /etc/os-release or alternatively from /usr/lib/os-release inside the compressed filesystem.
  • Create a Dockerfile containing the appropriate labels and the root filesystem as the sole layer.
  • Build the Docker image and push it to the GitHub container registry.
  • Extract the root filesystem and run the configure.sh script in it in a chroot jail.
  • Re-compress the root filesystem.
  • Update the Dockerfile to use the new root filesystem.
  • Build the configured image and push it to the GitHub container registry.
  • Generate the images JSON metadata information intended for builtins.rootfs.json.

The workflow works in matrix. It is triggered by a commit on the deploy/images branch and is scheduled to run each Sunday morning at 2am.

When run, the workflow will build and push the new images automatically. After that, all the metadata file are gathered into a builtins.rootfs.json file that is pushed on the rootfs branch.

Steps for adding a distribution

Adding a new named distro to the builtins involves the following steps:

  • Download the distribution base root filesystem from upstream.
  • Test it as is with Wsl:
    PS> New-WslInstance test -From distro.tar.gz
  • Adapt and/or test the configure.sh script for the new distribution:
    PS> Invoke-WslInstance -In test -User root ./configure.sh
  • Add the distribution name and base root filesystem URL into the matrix configuration (see below).

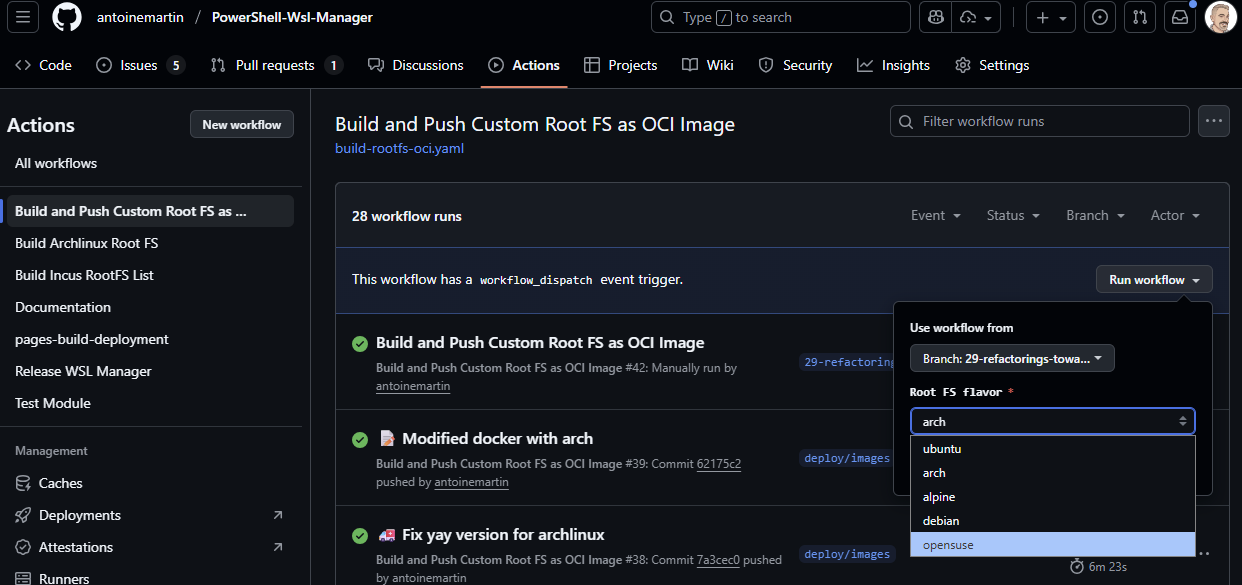

  • Test the build with a workflow dispatch, i.e. running the build manually.
  • Test the images:
    PS> New-WslInstance test -From docker://ghcr.io/...#latest
  • Make a pull request.

The following details each step for OpenSuse. OpenSuse is a RPM based distribution close to RHEL. A rolling release version of the distribution is available under the name Tumbleweed.

Metadata description

The following example shows the metadata produced by the build workflow:

{
  "Type": "Builtin",
  "Name": "opensuse-tumbleweed",
  "Os": "Opensuse-tumbleweed",
  "Url": "docker://ghcr.io/antoinemartin/powershell-wsl-manager/opensuse-tumbleweed#latest",
  "Hash": { "Type": "docker" },
  "Release": "20250825",
  "Configured": true,
  "Username": "opensuse-tumbleweed",
  "Uid": 1000,
  "LocalFilename": "docker.opensuse-tumbleweed.rootfs.tar.gz"
}

@{
    ...
    OpenSuse   = @{
        Name    = 'opensuse'
        Os      = 'Opensuse'
        Url     = "docker://ghcr.io/antoinemartin/powershell-wsl-manager/opensuse#latest"
        Hash    = @{
            Type      = 'docker'
        }
        Release = 'tumbleweed'
        Configured = $true
        Username = 'opensuse'
        Uid = 1000
    }
}

Hash Property Explanation

The Hash property in the metadata describes where to find the digest information of the image in order to verify that the right content has been downloaded. In the above example, it contains only:

{
  "Type": "docker",
}

Because the digest is actually retrieved by accessing the manifest of the image. More than that, it's part of the URL, and it ensures the integrity and authenticity of the downloaded image.

When the image is not a docker image and the URL has the following form:

https://cdimages.ubuntu.com/ubuntu-wsl/daily-live/current/questing-wsl-amd64.wsl

The usual way to verify the image is to use a checksum file. The Hash property in the metadata describes where to find the digest information of the image in order to verify that the right content has been downloaded.

It has the following properties:

  • Url: Points to the checksum file provided by the distro provider. This file contains the expected digest value for the Image archive.

  • Type: 'sums' indicates that the hash file contains checksum values for several files in a standard format, with the hash value followed by the filename:

    8a8576ddf9d0fb6bad78acf970a0bf792d062f9125d029007823feaba7216bba rootfs.tar.xz
4469fbcb82ad0b09a3a4b37d15bf1b708e8860fef4a9b43f50bdbd618fb217bf rootfs.squashfs

    single indicates that the destination contains only the hash value of the image, and with docker the hash is given by the manifest of the docker image.

  • Algorithm: Specifies the hashing algorithm used to compute the digest. Nowadays, this is typically SHA256.

This verification process protects against corrupted downloads and ensures you're installing the exact Image image that the distribution organization intended to distribute.

Performing the addition

For OpenSuse, the upstream image URL we find is the following:

https://download.opensuse.org/tumbleweed/appliances/opensuse-tumbleweed-dnf-image.x86_64-lxc-dnf.tar.xz

Create an instance from the Upstream URL

Create a local WSL instance with the URL:

PS> New-WslInstance suse -From https://download.opensuse.org/tumbleweed/appliances/opensuse-tumbleweed-dnf-image.x86_64-lxc-dnf.tar.xz
⌛ Creating directory [C:\Users\AntoineMartin\AppData\Local\Wsl\suse]...
⌛ Getting checksums from https://download.opensuse.org/tumbleweed/appliances/SHA256SUMS...
⌛ Downloading https://download.opensuse.org/tumbleweed/appliances/opensuse-tumbleweed-dnf-image.x86_64-lxc-dnf.tar.xz...
opensuse-tumbleweed-dnf-image.x86_64-lxc-dnf.tar.xz (46,3 MB) [===============================================] 100%
🎉 [opensuse:unknown] Synced at [C:\Users\AntoineMartin\AppData\Local\Wsl\RootFS\opensuse-tumbleweed-dnf-image.x86_64-lxc-dnf.tar.xz].
⌛ Creating instance [suse] from [C:\Users\AntoineMartin\AppData\Local\Wsl\RootFS\opensuse-tumbleweed-dnf-image.x86_64-lxc-dnf.tar.xz]...
🎉 Done. Command to enter instance: Invoke-WslInstance -In suse or wsl -d suse

Name                                        State Version Default
----                                        ----- ------- -------
suse                                      Stopped       2   False

Adapt and test the configure script

The configure.sh script configures the system. It identifies the Linux flavor by looking at the ID variable in the /etc/os-release script:

PS> wsl -d suse cat /etc/os-release
NAME="openSUSE Tumbleweed"
# VERSION="20221215"
ID="opensuse-tumbleweed"
...
PS>

Here it will use opensuse as the os name as well as the name for the default user to create.

The script tries to call a configure_suse() function. Let's create one in the script:

configure_opensuse() {
  echo "Hello from Tumbleweed..."
}

Note

As the script may be run through bash in posix mode (debian), dash or ash (alpine), you should stick to good old Bourne Again Shell syntax (POSIX) as much as possible.

We can now invoke the script:

PS> Invoke-WslConfigure suse -Verbose
COMMENTAIRES : Piping wsl.exe with arguments: --list --verbose
COMMENTAIRES : Opération « Configure instance » en cours sur la cible « suse ».
⌛ Running initialization script [C:\Users\AntoineMartin\Documents\WindowsPowerShell\Modules\Wsl-Manager/configure.sh] on instance [suse]...
COMMENTAIRES : Running wsl.exe with arguments: -d suse -u root ./configure.sh
COMMENTAIRES : Output:
We are on opensuse
Hello from Tumbleweed...
Configuration done.
<end of output>
🎉 Configuration of instance [suse] completed successfully.

Name                                        State Version Default
----                                        ----- ------- -------
suse                                      Stopped       2   False

PS>

PS> cd $env:USERPROFILE\Documents\WindowsPowerShell\Modules\Wsl-Manager
PS> wsl -d suse -u root ./configure.sh
We are on opensuse
Hello from Tumbleweed...
Configuration done.
PS>

When the configuration has been performed without errors, the configure.sh script creates a file named /etc/wsl-configured to prevent re-configuration in case the WSL distribution is exported.

Running the configuration again doesn't work:

PS> wsl -d suse -u root ./configure.sh
Already configured
PS>

However, deleting the file /etc/wsl-configured allows re-running the configuration again:

PS> wsl -d suse -u root rm /etc/wsl-configured
PS> Invoke-WslConfigure suse
We are on opensuse
Hello from Tumbleweed...
Configuration done.
PS>

You have the same behavior using the Invoke-WslConfigure cmdlet with the -Force Parameter:

PS>  Invoke-WslConfigure suse -Force -Verbose
COMMENTAIRES : Piping wsl.exe with arguments: --list --verbose
COMMENTAIRES : Opération « Configure instance » en cours sur la cible « suse ».
COMMENTAIRES : Force reconfiguration of instance [suse]
COMMENTAIRES : Running wsl.exe with arguments: -d suse -u root rm -rf /etc/wsl-configured
⌛ Running initialization script [C:\Users\AntoineMartin\Documents\WindowsPowerShell\Modules\Wsl-Manager/configure.sh] on instance [suse]...
COMMENTAIRES : Running wsl.exe with arguments: -d suse -u root ./configure.sh
COMMENTAIRES : Output:
We are on opensuse
Hello from Tumbleweed...
Configuration done.
<end of output>
🎉 Configuration of instance [suse] completed successfully.

Name                                        State Version Default
----                                        ----- ------- -------
suse                                      Stopped       2   False

Now this is a matter of completing the configure_opensuse() method in order to perform the configuration.

OpenSuse is a RPM based distribution similar to RHEL. The configuration script already contains a function configure_rhel_like() to configure such systems. The main difference between Suse and the RHEL based distributions is the use of dnf as the package manager. dnf is a fork of yum and is command line compatible. Instead of copy/pasting configure_rhel_like() to create configure_opensuse(), we can adapt configure_rhel_like() to take the name of the package manager as argument.:

diff --git a/configure.sh b/configure.sh
index f622a5d..87d3c2e 100644
--- a/configure.sh
+++ b/configure.sh
@@ -269,7 +269,8 @@ configure_arch() {

 # Configure a RHEL like system (CentOS, Almalinux, ...)
 #
-# @param $1 list of groups separated by commas of the groups to add to the sudo
+# @param $1 the name of the package manager (yum, dnf)
+# @param $2 list of groups separated by commas of the groups to add to the sudo
 #           user. The administrative groups may differ from distribution to
 #           distribution (staff, wheel, admin).
 # @param $@ list of additionnal packages to add.
@@ -283,14 +284,16 @@ configure_arch() {
 # - Add a sudo user derived from the name of the distribution with the
 #   appropriate configuration and groups
 configure_rhel_like() {
+    local pkmgr=$1
+    shift
     local admin_group_name=$1
     shift
     local additional_packages="$@"

     echo "Adding packages..."
-    yum -y -q makecache >/dev/null 2>&1
-    yum -y -q install zsh git sudo gnupg socat openssh-clients tar $additional_packages >/dev/null 2>&1
-    yum -y clean all >/dev/null 2>&1
+    $pkmgr -y -q makecache >/dev/null 2>&1
+    $pkmgr -y -q install zsh git sudo gnupg socat openssh-clients tar $additional_packages >/dev/null 2>&1
+    $pkmgr -y clean all >/dev/null 2>&1

     change_root_shell

Then we need to adapt the already existing configure_...() functions in order to pass yum as argument:

@@ -304,22 +307,31 @@ configure_rhel_like() {
 # Configure an Alma Linux System
 # @ see configure_rhel_like
 configure_almalinux() {
-    configure_rhel_like adm,wheel
+    configure_rhel_like yum adm,wheel
 }

 # Configure a Rocky Linux System
 # @ see configure_rhel_like
 configure_rocky() {
-    configure_rhel_like adm,wheel
+    configure_rhel_like yum adm,wheel
 }

 # Configure a CentOS Linux System
 # @ see configure_rhel_like
 configure_centos() {
-    configure_rhel_like adm,wheel
+    configure_rhel_like yum adm,wheel
 }

And then through trial and error, we find the following peculiarities to Suse:

  • The admin group seems to be trusted
  • The curl and gzip commands are not present on the base system and need to be installed.
  • dnf is slow but can be made faster.

We end up with the following configure_opensuse() command:

+# Configure an OpenSuse Linux System
+# @ see configure_rhel_like
+configure_opensuse() {
+    echo "max_parallel_downloads=10" >> /etc/dnf/dnf.conf
+    echo "fastestmirror=True" >> /etc/dnf/dnf.conf
+
+    configure_rhel_like dnf trusted curl gzip
+}
+
 username=$(cat /etc/os-release | grep ^ID= | cut -d= -f 2 | tr -d '"' | cut -d"-" -f 1)
 if [ -z "$username" ]; then
     echo "Can't find distribution flavor"

Important

When a error occurs on gitstatus initialization, executing the following is useful for debugging:

PS> wsl -d suse -u root sh -c "echo GITSTATUS_LOG_LEVEL=DEBUG >> ~/.zshrc"

Once the modifications are performed, the full test cycle is the following:

PS> Remove-WslInstance suse
PS> New-WslInstance suse -From https://download.opensuse.org/tumbleweed/appliances/opensuse-tumbleweed-dnf-image.x86_64-lxc-dnf.tar.xz
...
PS> Invoke-WslConfigure suse -Verbose
COMMENTAIRES : Piping wsl.exe with arguments: --list --verbose
COMMENTAIRES : Opération « Configure instance » en cours sur la cible « suse ».
⌛ Running initialization script [C:\Users\AntoineMartin\Documents\WindowsPowerShell\Modules\Wsl-Manager/configure.sh] on instance [suse]...
COMMENTAIRES : Running wsl.exe with arguments: -d suse -u root ./configure.sh
COMMENTAIRES : Output:
We are on opensuse
Adding packages...
Change root shell to zsh
Adding oh-my-zsh...
Configuring root home directory /root...
Configuring user opensuse...
Configuring opensuse home directory /home/opensuse...
Configuration done.
<end of output>
🎉 Configuration of instance [suse] completed successfully.

Name                                        State Version Default
----                                        ----- ------- -------
suse                                      Stopped       2   False

PS> wsl -d suse -u opensuse
[powerlevel10k] fetching gitstatusd .. [ok]
❯ id
uid=1000(opensuse) gid=1000(opensuse) groups=1000(opensuse),42(trusted)
❯ exit
PS>

Adding the flavor to the matrix

The .github/templates/builtins_matrix.json.tpl file contains the image URLs for each builtin distribution. Add an entry with the name opensuse and the above URL:

.github/templates/builtins_matrix.json.tpl
{
  "include": [
    ...
    {
        "flavor": "opensuse",
        "version": "latest",
        "url": "https://download.opensuse.org/tumbleweed/appliances/opensuse-tumbleweed-dnf-image.x86_64-lxc-dnf.tar.xz"
    }
  ]
}

You also need to add the opensuse flavor has one of the possible values of the workflow dispatch:

.github/workflows/build-rootfs-oci.yaml
18
19
20
21
22
23
24
25
26
27
28
29
30
31
on:
  workflow_dispatch:
    inputs:
      flavor:
        description: "Root FS flavor"
        required: true
        default: "arch"
        type: choice
        options:
          - ubuntu
          - arch
          - alpine
          - debian
          - opensuse

You can now trigger the workflow manually from your fork of the repository:

start a workflow dispatch

Once built, the image should appear in the project's packages.

Testing the installation of the image

Once the docker image is built and available in the github registry, you can test it with Wsl-Manager:

We can test built image with Wsl-Manager:

PS> New-WslInstance suse -From docker://ghcr.io/yourorganisation/powershell-wsl-manager/opensuse#latest | iwsl
...
[powerlevel10k] fetching gitstatusd .. [ok]
  /mnt/c/Users/AntoineMartin                                                                                07:36:00
❯

You can now commit your modifications and make a pull request 👍 😄.
